Maxi

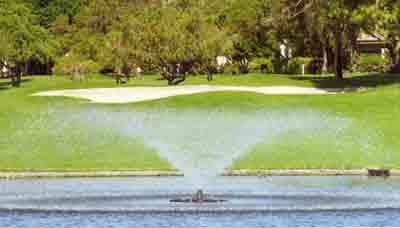

The MAXI Series is the workhorse of the StrataVator family allowing for fountain displays above Ninety (90) feet. It features an even easier nozzle exchange system than the MINI or MIDI units. MAXIs are shipped completely assembled with all components (cable length needs to be specified at time or order).

All StrataVator fountains are designed for flexible installation and easy maintenance. All motors are oil-free and water cooled. The electrical Quick Disconnect for easy cable handling during winter storage and maintenance. The nozzle patterns are interchangable with minimum effort. Lighting is also available.

All StrataVator fountains ship with: (1) pump, (1) motor, Command Center & 10ft. of motor cable with Quick Disconnect

STRATAVATOR MAXI - 5 HP MAXI - 5 HP / 3 MAXI - 10 HP MAXI - 15HP
MIN. WATER DEPTH. (FT.) 5 5 5 5
POWER CONSUMPTION (W / A) 6061 / 26.3 3738 / 16.3 7900 / 34.4 11350 / 49.4
OPERATING VOLTAGE (V / HZ) 208 - 230 / 60 208 - 230 / 60 208 - 230 / 60 208 - 230 / 60
PHASE 1 3 3 3
MAX. CABLE RUN (FT.) 450 450 350 250
CABLE GAUGE SEE CHART SEE CHART SEE CHART SEE CHART
CABLE GRADE (NEC CODE) STW STW STW STW
PART # 82752 82751 82771 82781

CABLE CHART

STW CABLE GAUGE REQUIREMENT CABLE RUN MAXI - 5 HP MAXI - 5 HP / 3 MAXI - 10 HP MAXI - 15HP
0 - 150 FT 10/4 10/4 10/4 10/4
151 - 200 FT 8/4 8/4 8/4 6/4
201 - 250 FT 8/4 8/4 6/4 6/4
251 - 300 FT 6/4 6/4 6/4
301 - 350 FT 6/4 6/4 6/4 -
351 - 400 FT 6/4 6/4 - -
401 - 450 FT 6/4 6/4 - -

SPRAY PATTERNS


Heavy Water Arch
NOZZLES DIA (FT.) H (FT.) GPM
5 HP 20 15 365
5 HP / 3 23 17 378
10 HP 24 18 408
15 HP 25 20 444
PART # 31210

Fog Jet
NOZZLES DIA (FT.) H (FT.) GPM
5 HP 20 21 162
5 HP / 3 22 24 197
10 HP 22 23 216
15 HP 26 37 250
PART # 31209

Sky Cascade
NOZZLES DIA (FT.) H (FT.) GPM
5 HP 6 41 150
5 HP / 3 6 56 185
10 HP 6 66 200
15 HP 6 92 228
PART # 31201


Trumpet Jet

NOZZLES DIA (FT.) H (FT.) GPM
5 HP 45 50 167
5 HP / 3 45 65 206
10 HP 47 72 225
15 HP 55 90 264
PART # 31207


Trumpet Geyser

NOZZLES DIA (FT.) H (FT.) GPM
5 HP 33 29 265
5 HP / 3 37 39 302
10 HP 39 39 330
15 HP 45 53 370
PART # 31208
